Sri Balaji Heat Engineers are making all kinds of Industrial Heaters like Air Heaters. Long Life U shape Air Heaters, Long Life Finned U shaped Air Heaters, Strip Heaters. Strip Finned Heaters. Cartridge Brass Heaters, Power Saving Heaters. Tubular Air Heaters, Mica Band and Nozzle Heaters, Air Duct Heaters, Industrial Water or Oil Immersion Heaters and Bobbin Type Immersion Heaters. Our heaters are made from high quality materials and manufactured under strict quality controls. Every heater is tested to meet or exceed current ISI test standards. We can deliver many custom heaters quickly and cost effectively. All this at the best rates in the Industry.
Heaters
Heating Blower
Duct Heater
flp duct heater
flp duct heater
Band Heaters
Circulation Heater
FLP Flange Heater
U Type Heater
M Type Heater
Customised Heating Systems
HI Density Immersion Heater

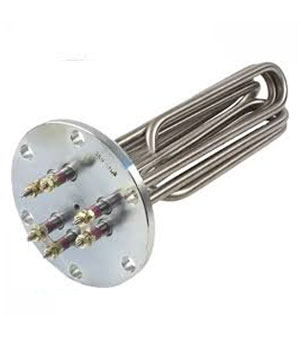

U-Type Heaters

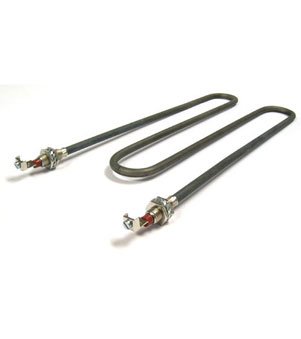

M-Type Heaters
Our company has gained name and fame in the domain of manufacture, supply, trade, service provider, import and export of M Type Heaters. The offered range of these heaters is made by our expert professionals using high quality material. These heaters are available in variegated specifications according to customer needs. Apart from this these heaters have gained huge appreciation among our clients due to their efficient working and cost effectiveness

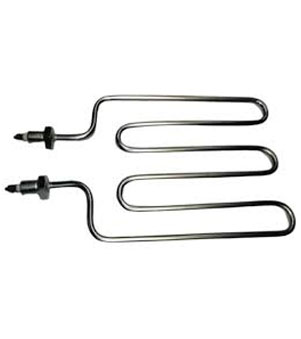

Tubular Heaters
These heaters are made of chrome-nickel steel tubular sheathed heating element compacted with high grade insulation powder for better transmission of heat, provided with adjustable brackets and heavy duty brass terminals. features designed as per customer specifications diameter options of 6mm, 8mm, 10.5mm 12.5mm, 15.5mm sheath material options of 5.5.304/5.5.316/5.5.321/ss.310/incoloy 800/ copper titanium s.s. Termination watt density 25 watts per sq inch application ovens and incubators hopper dryers kitchen equipments hot plates packaging machines textile industry shoe making industry engineering industry.

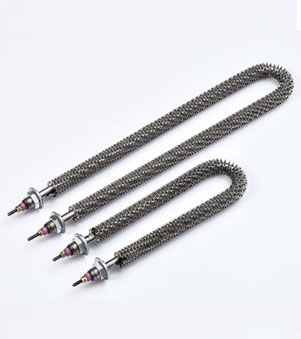

Finned U-Type Heaters
Finned tubular heating elements are of the type where the surface area enlarged by a strip in order to heat gases at high power the surface temperature is small and the heating elements are short. Finned Air Heaters for Higher Temperature are designed as per specifications. We are used heating elements high quality low watt density magnesium oxide(96% pure MGO high grade) filled. SS grade sheath material and high grade resistance wire is precisely centered in a heavy gauge material tube filled U shape Air Heater with 304 grade SS & Gl coated finned tubular heaters.

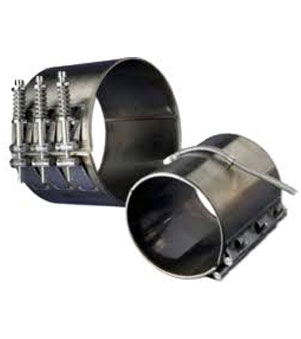

Mica Band Heaters
Mica bands are made of an electrical resistance ribbon or wire, which is wound around a mica winding card and sandwiched between two sheets of mica, then wrapped in sheet metal. The resistance wire or ribbon that converts electrical energy to thermal energy is normally a nickel-chromium alloy of either 80% nickel which is useful to 1100°С ог 60% nickel which is useful to 950°c

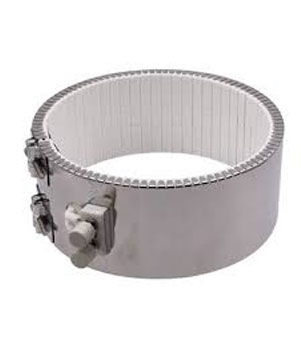

Ceramic band Heaters
Ceramic bands are made of an electrical resistance helical coil, which is inserted around a series of interlocking steatite bricks of 1100°c having physical and die electric strength and good thermal conductivity, covered with 4mm insulation and then wrapped in sheet metal. The resistance wire that converts electrical energy to thermal energy is a nickel-chromium alloy of 80% nickel normally termed as Ni-Chrome. The sheet metal is stainless steel (chrome nickel) for temp upto 700°c. Features Designed as per customer specifications Variety of termination options Available in one or two piece construction Temp upto 700 deg C S.S. braided termination Metal covering Application Injection moulding Blow Moulding Extrusion Pipe and drum heating

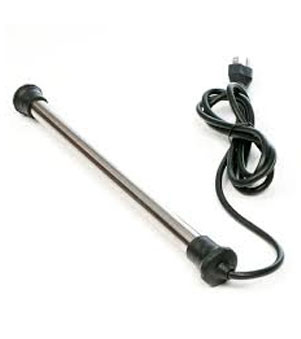

Titanium Heaters
Titanium tubular heaters are increasingly finding application in small Electro Plating Industries". Single and Three phase "Titanium Tubular heaters are made according to customer specifications at various capacity and length. Suitable grade Titanium tubes are inserted with rewireable elements and terminals are encapsulated by rubber cap. Tube size and length are available to suit tank sizes and capacity of the heater.
Duct Heaters
Sri Balaji Heat Engineers make Air Duct Heaters are used for process gas heating, drying ovens. air preheating, paint drying and curing, heat treating and more. Various terminal housings and control options available. Air duct heaters are designed for heating low pressure air or gases. Sri Balaji Heat Engineers make series air duct heaters are constructed with stainless steel tubular finned elements mounted in a stainless/ MS flange with operating temperatures up to 400 A C. These electric process heaters can be designed to fit rectangular ductwork and can be supplied with transition sections when used on circular or smaller ducts.

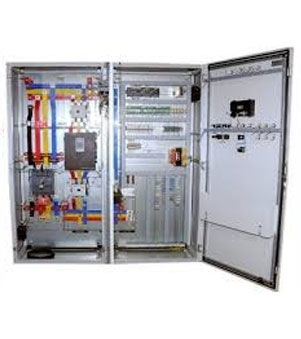

Control Panel Heaters
Heater Control Panel, which we make available. is manufactured using the most advanced technology. We are counted amidst the most reliable Manufacturers and Suppliers of the Heater Control Panel from Thane (Maharashtra). Our Heater Control Panel is manufactured using the most premium materials and components.

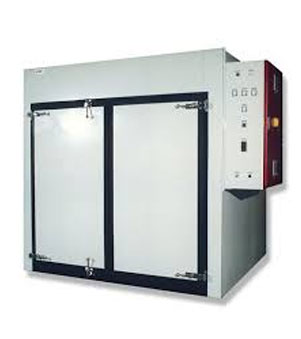

High temperature Heaters
Balaji leads the industry in developing high- temperature heating technologies and products In various sizes and constructions to fit a broad range of processes and applications. Tubular and ceramic fiber heaters offer capabilities such as ultra-fast ramp rates, precise temperature uniformity and high temperatures for applications requiring low thermal mass. Heaters are sized and designed to accommodate small to large applications and various environmental conditions.
